Double Rated:SK-3010/3011/3012/3013/3015/3016
SK-3010/3011/3012/3013/3015/3016
*RELIABILITY AND USABILITY:
TAUT BAND METER MOVEMENT with Drop-proof, Internal Core Magnet type minimizes outside magnetic influence and ensures trouble free performance.
As the illumination Lamp is turned on when M ohm Switch is pressed, measurements in dark places are available. In addition, Smart Arrangement of the switches and the Carrying Case Style presents easier operation.

*HIGH VOLTAGE CHARACTERISTICS:

All models provide a high voltage characteristic for lower scales of rated resistance to meet VDE specifications.

*TIMER SWITCH:

All models are equipped with TIMER Switch that enables continuous 3 minutes measurements.
Press TIMER Switch when desired, POWER LED turns on. TIMER Switch and POWER LED turn off automatically after 3 minutes.

*LIVE LINE DETECTION AND CAPACITANCE DISCHARGE:

When Test Leads are connected to Power Line with FUNCTION Switch set to M ohm Position, if the Power Line is alive, the meter indicates the voltage, and if the Power Line stores capacitance, it is discharged automatically with the Test Leads connection.

*LOW OHM MEASUREMENTS (SK-3015/3016):

SK-3015 can measure Low Ohms of 0 to 50 ohm to check Relays Switches and Fuses.
SK-3016 can measure Low Ohms of 0 to 2 Ohm, or 0 to 20 Ohm (you can choose either) to check Relays Switches, Fuses and Earth Resistance.

*DUST-PROOF AND WATER-RESISTANT CASES:

Cases are designed to be Dust-proof and Water-resistance, and One Packaging Carrying Case style.

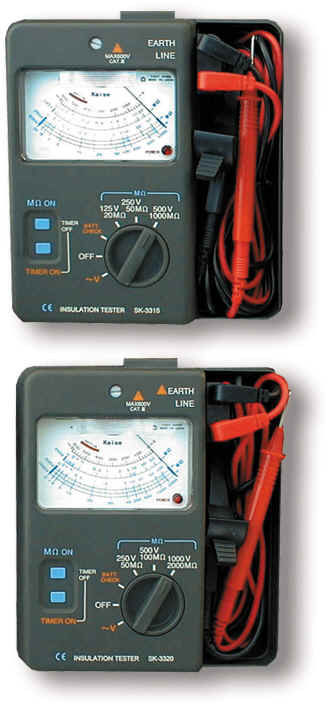

Triple Rated:SK-3310/3315/3320/3322
SK-3310/3315/3320/3322
RELIABILITY AND USABILITY:

TAUT BAND METER MOVEMENT with Drop-proof, Internal Core Magnet type minimizes outside magnetic influence and ensures trouble free performance.
As the illumination Lamp is turned on when M ohm Switch is pressed, measurements in dark places are available.
In addition, Smart Arrangement of the switches and the Carrying Case Style presents easier operation.

HIGH VOLTAGE CHARACTERISTICS:

All models provide a high voltage characteristic for lower scales of rated resistance to meet VDE specifications.

TIMER SWITCH:

All models are equipped with TIMER Switch that enables continuous 3 minutes measurements.
Press TIMER Switch when desired, POWER LED turns on. TIMER Switch and POWER LED turn off automatically after 3 minutes.

LIVE LINE DETECTION AND CAPACITANCE DISCHARGE:

When Test Leads are connected to Power Line with FUNCTION Switch set to M ohm Position, if the Power Line is alive, the meter indicates the voltage, and if the Power Line stores capacitance, it is discharged automatically with the Test Leads connection.

LOW OHM MEASUREMENTS (SK-3015):

SK-3015 can measure Low Ohms of 0 to 50 ohm to check Relays Switches and Fuses.

DUST-PROOF AND WATER-RESISTANT CASES:

Cases are designed to be Dust-proof and Water-resistance, and One Packaging Carrying Case style.
